HPC cutter wheel data

Not a complete listing; reference data and vector images are taken from the HPC Blitz 1200CMB manual (PDF). I've had trouble finding this info easily compiled elsewhere.

Quick links

• CW-14MC
• CW-20FM
• CW-32MC
• CW-47MC
• CW-90MC
• CW-105
• CW-1011
• CW-1012
• CW-1013
• CW-1014

All cutters have mounting hole diameter of 0.375" and cutter diameter of 2.375" unless otherwise noted.

Cutter name	Description	Diagram	Symmetric?	Included angle	Flat width	Width	Notes

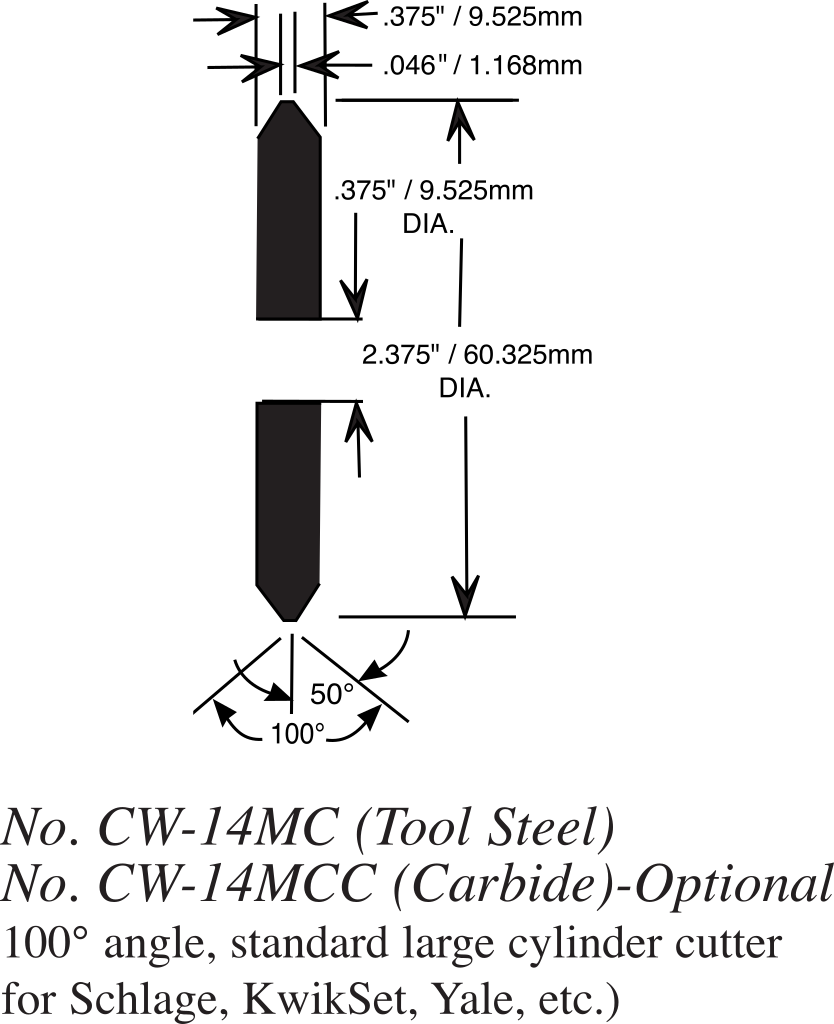

CW-14MC	100°, standard large cylinder cutter for Schlage, Kwikset, Yale, etc.	PNG SVG	Yes	100°	0.046"	0.375"

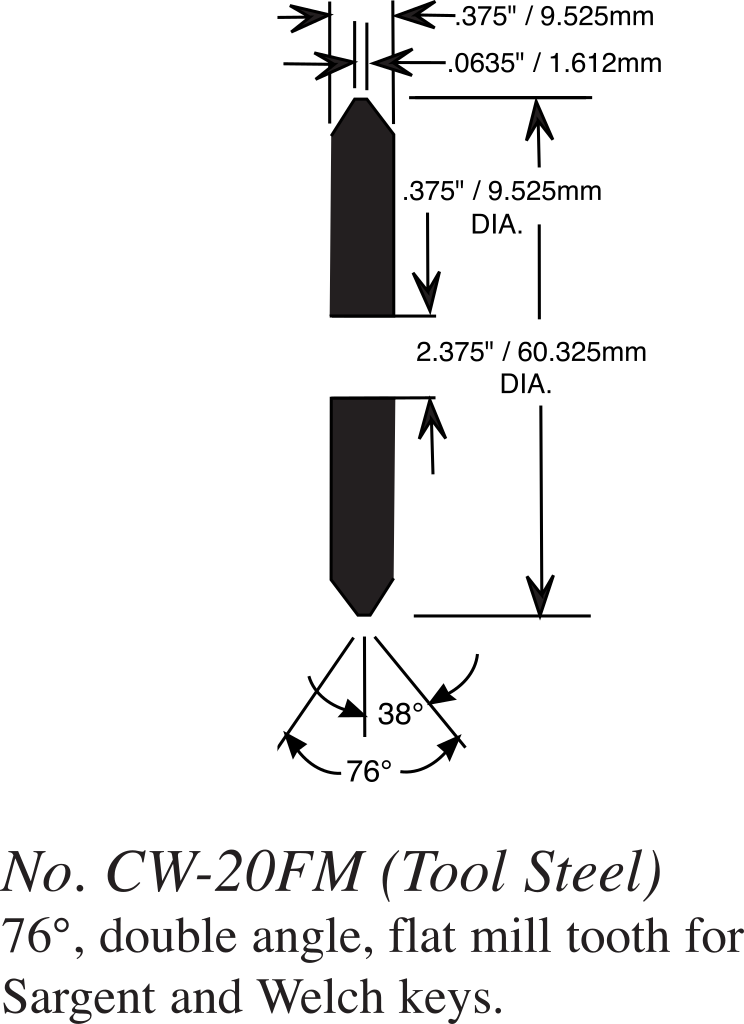

CW-20FM	76°, double-angle, flat mill tooth for Sargent and Welch keys.	PNG SVG	Yes	76°	0.0635"	0.375"

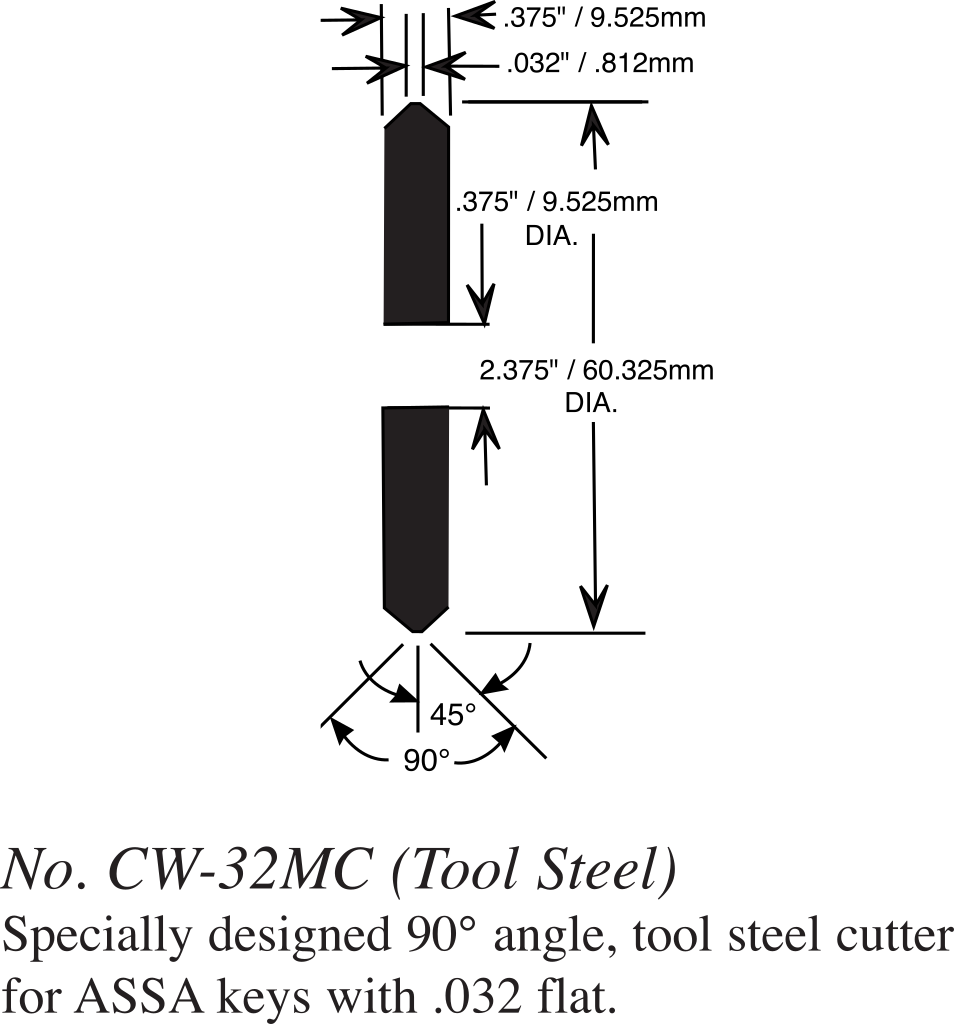

CW-32MC	Specially designed 90° angle, tool steel cutter for ASSA keys with .032" flat.	PNG SVG	Yes	90°	0.032"	0.375"

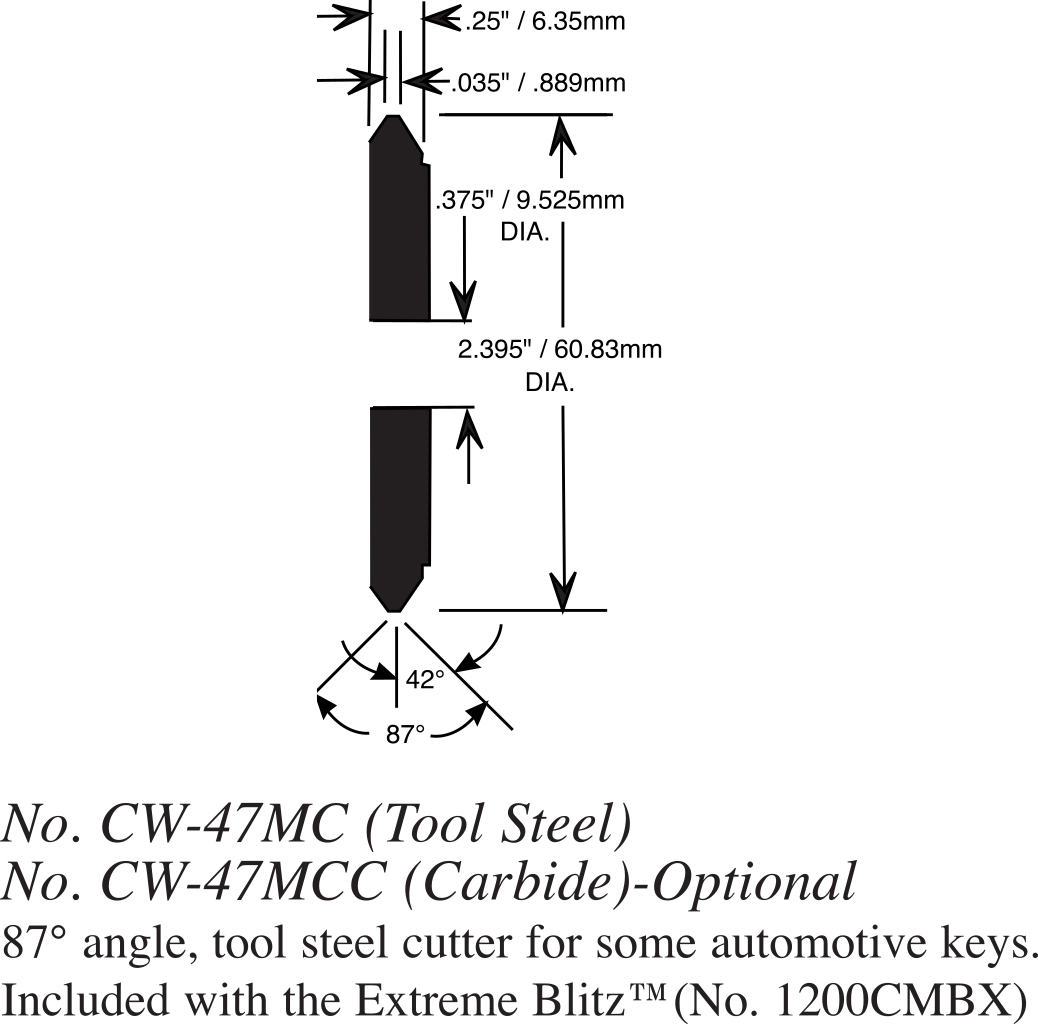

CW-47MC	87° angle, tool steel cutter for some automotive keys. Included with the Extreme Blitz™ (No. 1200CMBX)	PNG SVG	Yes	87°	0.035"	0.250"

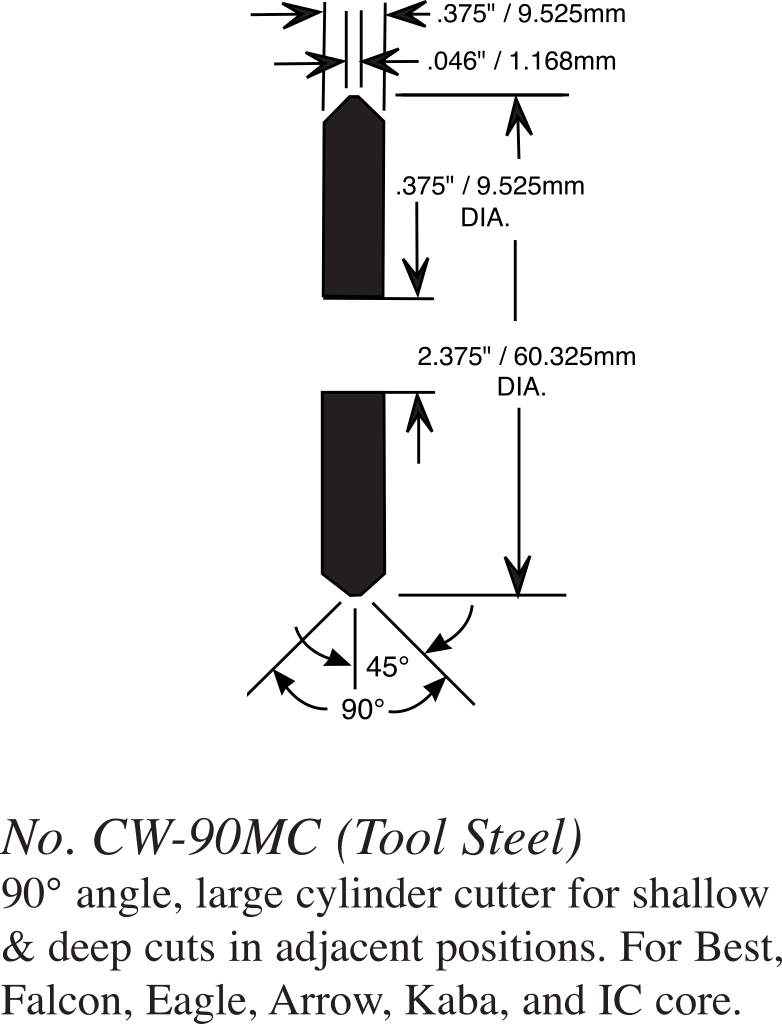

CW-90MC	90° angle, large cylinder cutter for shallow & deep cuts in adjacent positions. For Best, Falcon, Eagle, Arrow, Kaba, and IC core.	PNG SVG	Yes	90°	0.046"	0.375"

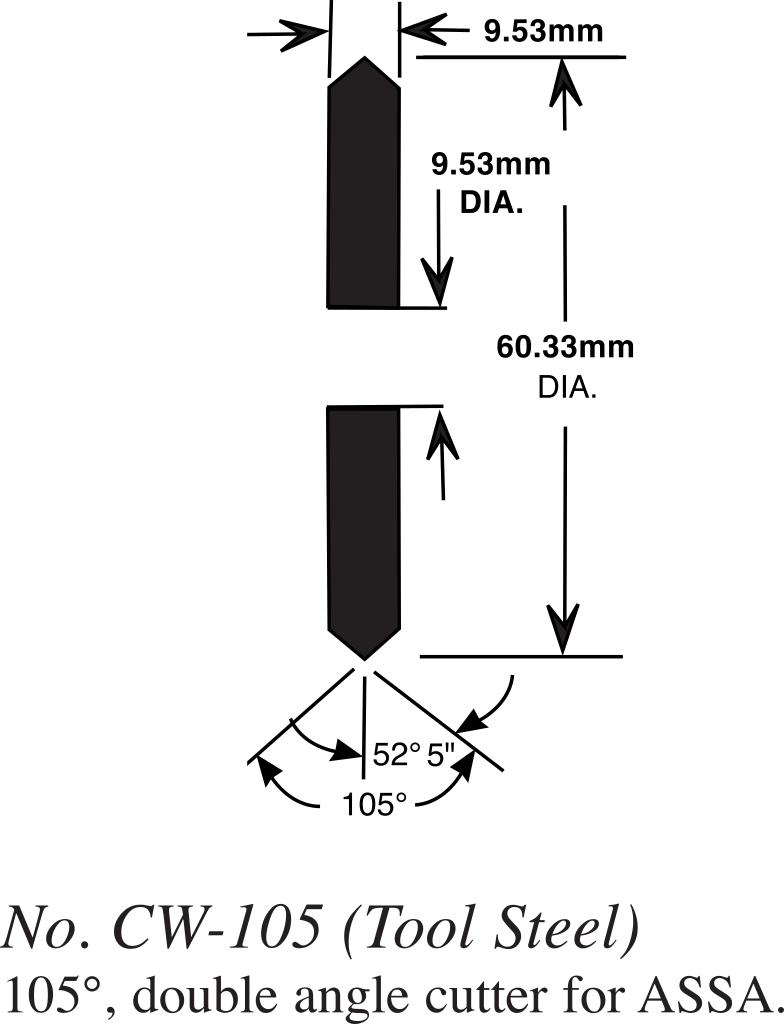

CW-105	105°, double-angle cutter for ASSA.	PNG SVG	Yes	105°	0mm	9.53mm	60.33mm cutter diameter, 9.53mm mounting hole diameter.

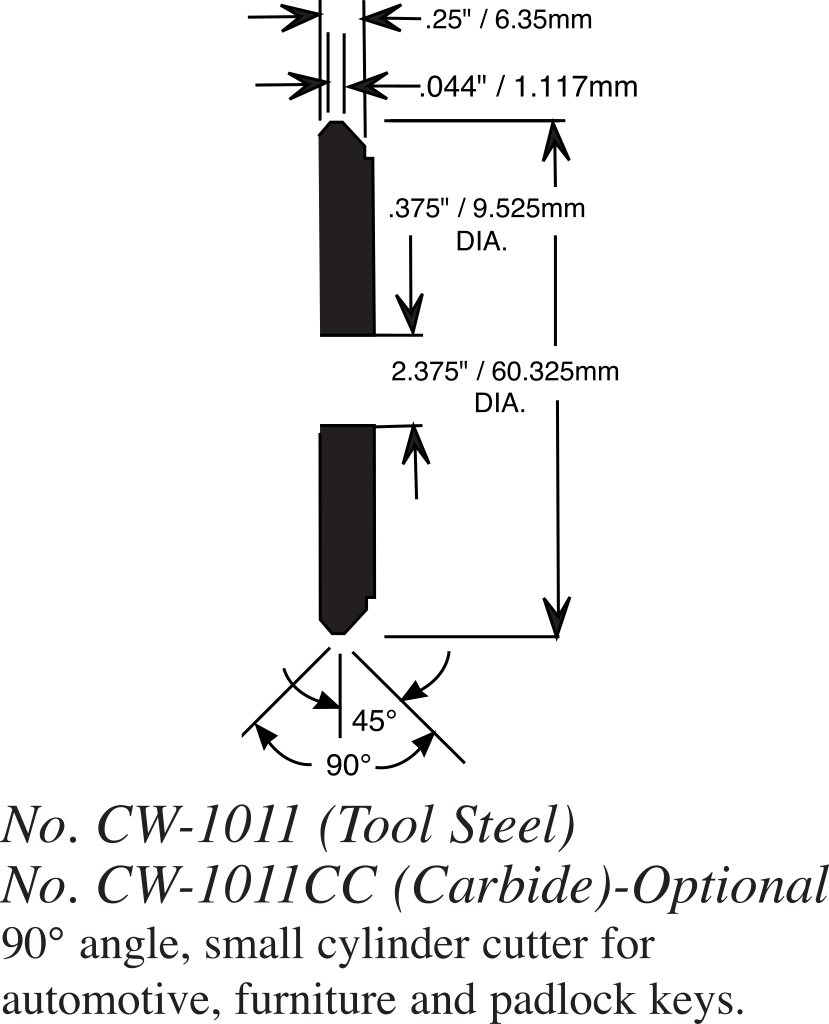

CW-1011	90° angle, small cylinder cutter for automotive, furniture and padlock keys.	PNG SVG	No	90°	0.044"	0.250"

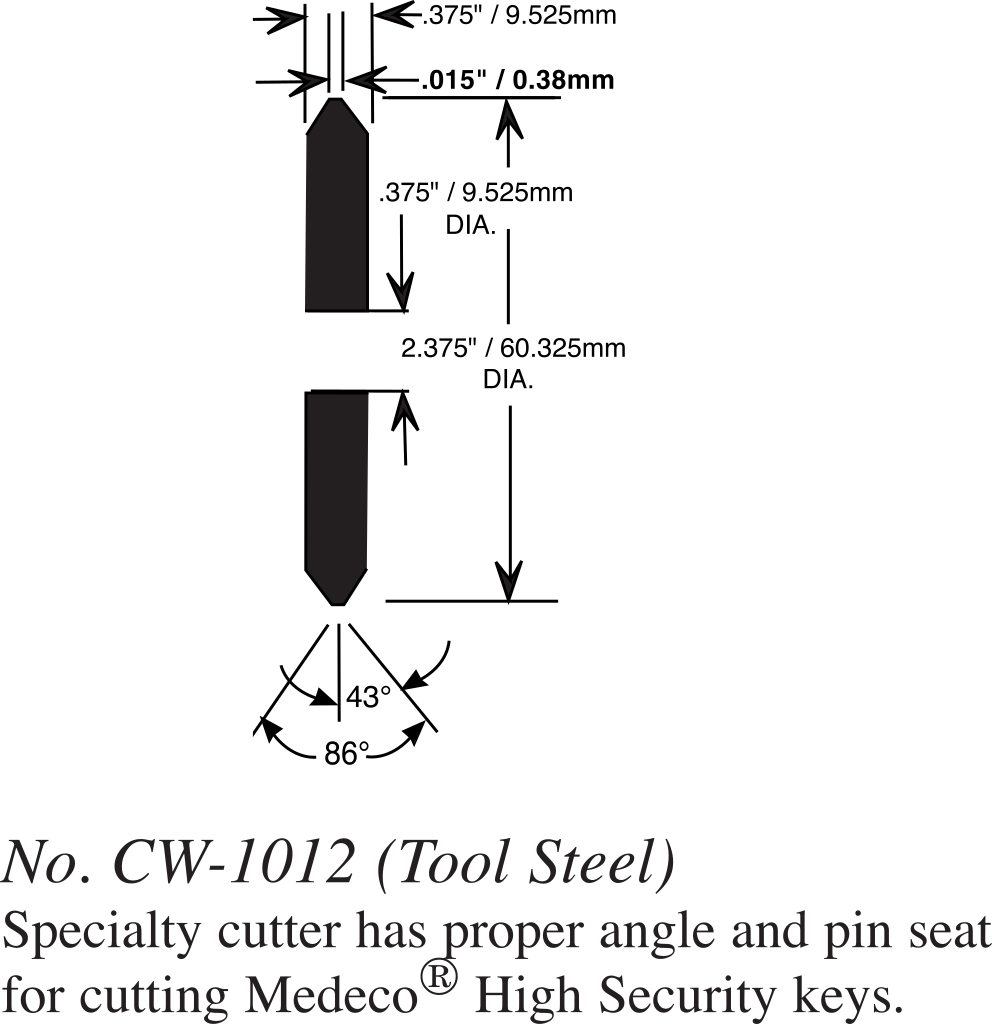

CW-1012	Specialty cutter has proper angle and pin seat for cutting Medeco® high-security keys.	PNG SVG	Yes	86°	0.015"	0.375"

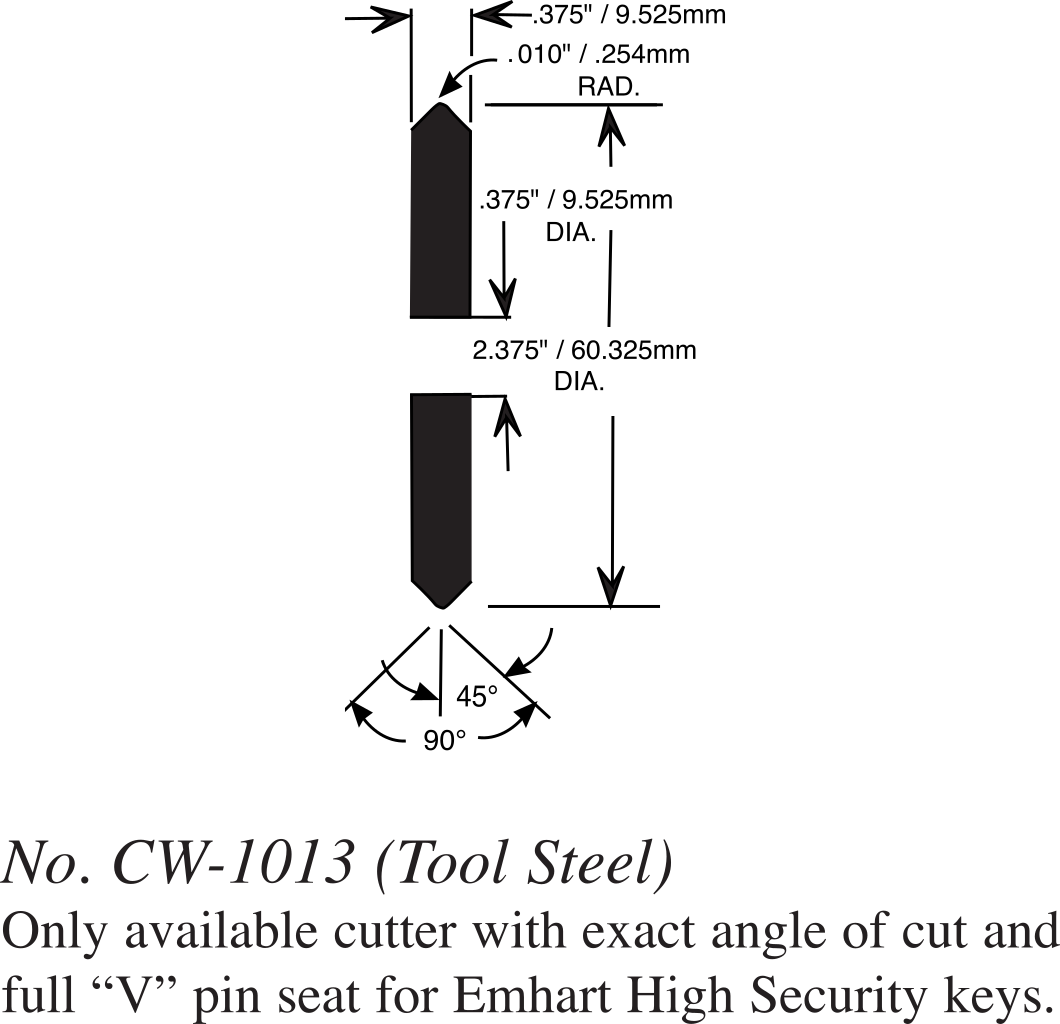

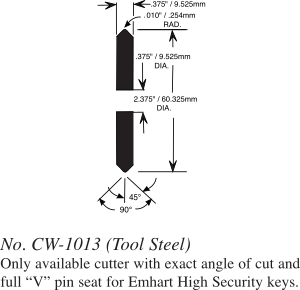

CW-1013	Only available cutter with exact angle of cut and full 'V' pin seat for Emhart high-security keys.	PNG SVG	Yes	90°	0.010"	0.375"

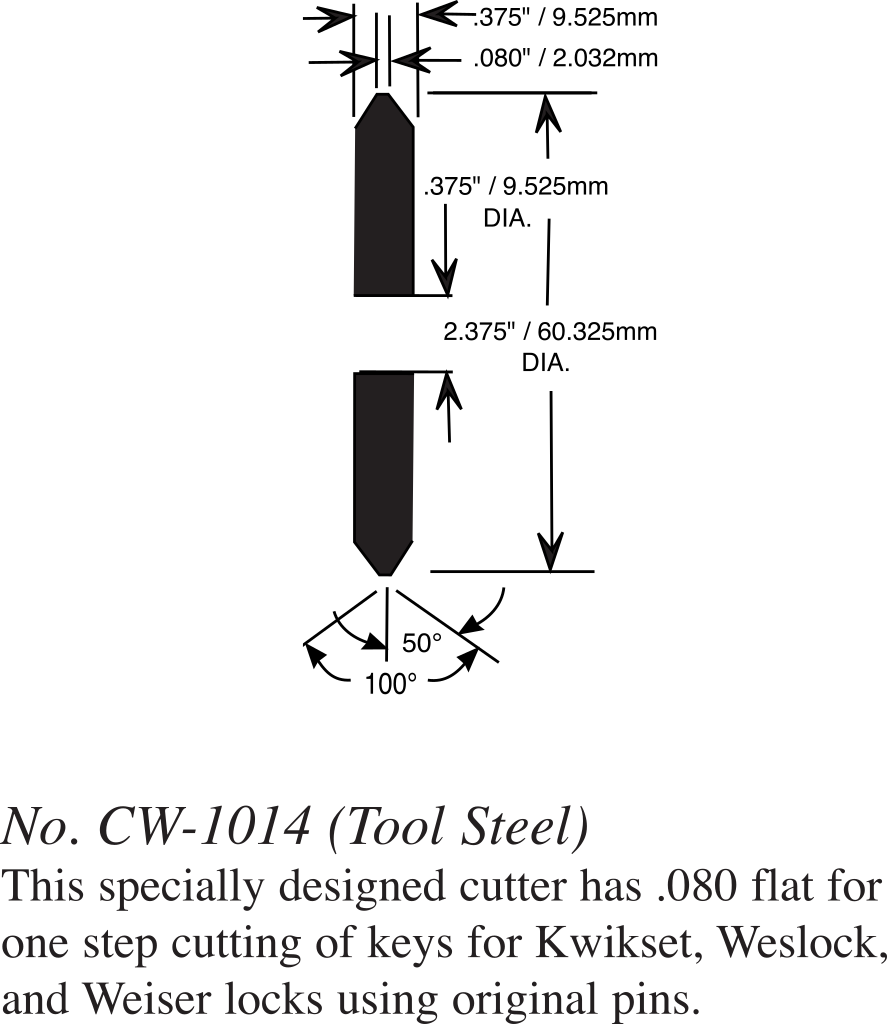

CW-1014	This specially designed cutter has .080" flat for one-step cutting of keys for Kwikset, Weslock, and Weiser locks using original pins.	PNG SVG	Yes	100°	0.080"	0.375"
